Sub-Atlantic

Compensator

* 제품상세보기

- <270, 370, 860, 2700cc>

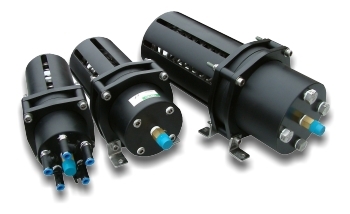

Our compensators allow for submerged systems to be flooded with an incompressible fluid. They provide a positive pressure to a submerged oil filled component or system to protect against (sea) water ingress. There are four sizes of rolling diaphragm, positive pressure compensators in corrosion resistant plastic suitable for ROV and tooling applications available with optional level sensors for volume monitoring. The range of sizes available make these simple units particularly suitable for compensating thrusters, oil filled junction boxes, valve packs etc.

- Four sizes - 270, 370, 860 and 2700cc
- Delrin Plastic Construction
- Grade 316 Stainless Steel Spring
- Adjustable Pressure Relief Valve
- Mounting Feet
- Low Level Proximity Sensor Option
- Level Sensors Available for all compensator sizes

첨부 파일 :

Compensator

* 제품상세보기

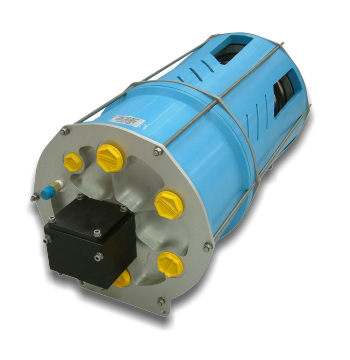

- Our 13.5 Litre / 3.6 usg positive pressure compensator is manufactured from plastic, stainless steel and aluminium alloy materials. It is available with an optional analogue level sensor.
Mean compensation pressure is 0.5 bar / 7 psi. An adjustable pressure relief valve, normally set at 1 bar, protects the unit from overfill and thermal expansion of the oil. Mounting feet are incorporated in the end caps. A compact analogue sensor that provides 0-100% level capacity feedback is available as a bolt-on option. Multiple compensators can be plumbed in parallel to increase total oil capacity using only a single level sensor. Ports are available in both SAE and BSPP versions.

- 13.5 litre / 3.6 usg capacity
- Extremely Lightweight
- Corrosion Resistant Materials
- Adjustable Pressure Relief Valve
- Positive Pressure
- Two Pressure Options
- Level Sensor Option
- Integral Mounts
- SAE or BSPP Versions

첨부 파일 :
